Dayun Vertical Takeoff Compound Wing UAV 10E
· Long endurance:3.5h with 1.6kg payload;2.5h with 2.3kg payload.
The DYFH‑10E is a high‑performance VTOL compound‑wing UAV. This lightweight drone adopts highly‑modular tool‑free design with quick‑disassembly structure. The UAV can be deployed and packed without any tools for high‑efficiency field operation. Equipped with all‑moving horizontal tail technology, this VTOL compound‑wing UAV integrates horizontal stabilizer and elevator as one unit, greatly improving flight maneuverability of the lightweight drone. The UAV is widely applied for surveying, mapping, patrol inspection and other industrial missions.

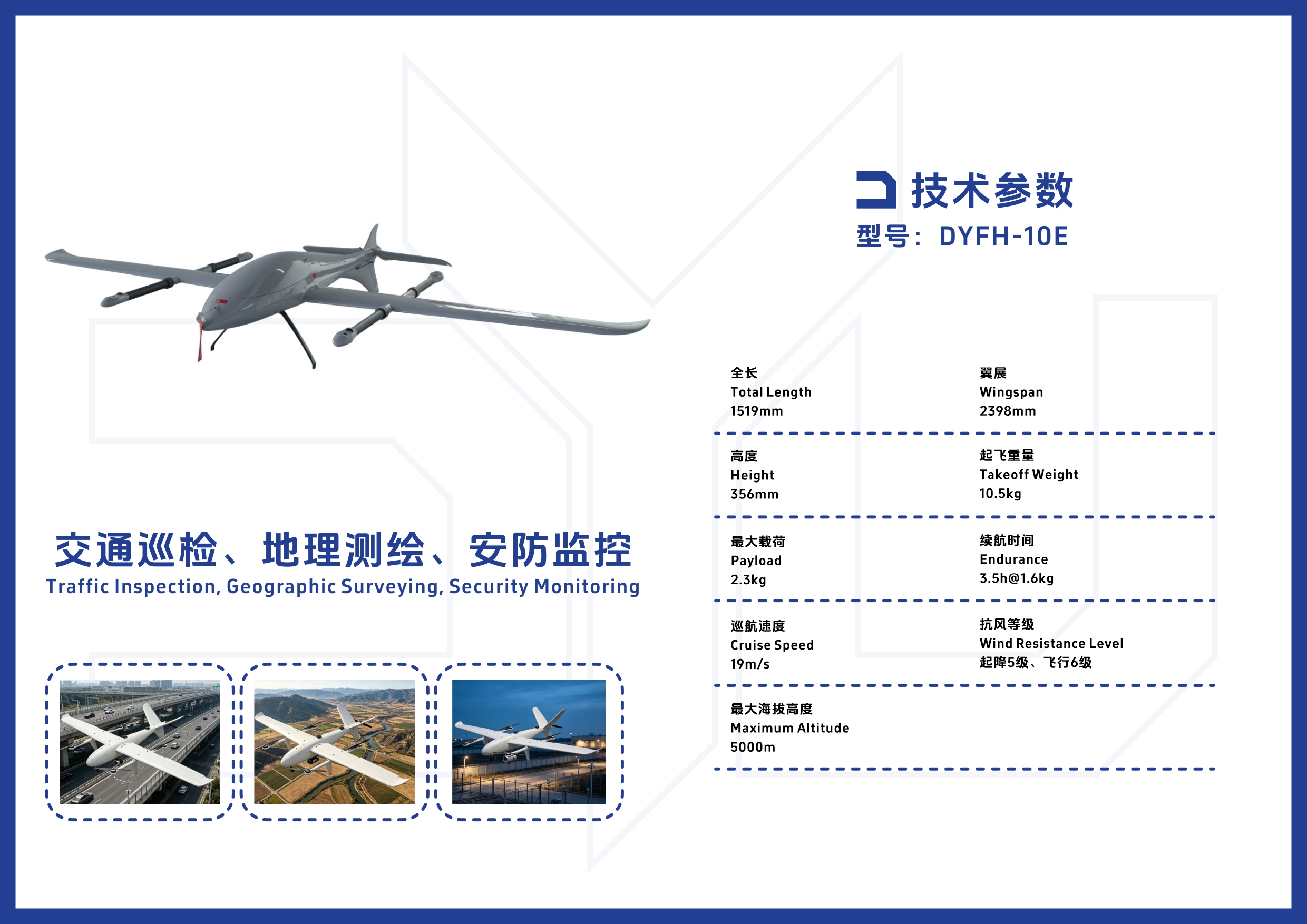

Specifications Length: 1519 mm Height: 356 mm Wingspan: 2398 mm Airframe material: Aviation carbon‑fiber composite Payload: 1.6 kg Maximum safe take‑off mass: 10.5 kg Safe level‑flight speed: 18‑35 m/s Cruising speed: 19 m/s Flight endurance: 3.5 h@1.6 kg / 2.5 h@2.3 kg Service ceiling: 5000 m Operating temperature: ‑20℃ ~ 55℃ Wind resistance: Level‑5 for take‑off & landing; Level‑6 for cruising
